High Capacity Model TQ-100 Stainless Steel Wire Mesh Belt Conveyor for Industrial Drying, Cooling and Material Handling Applications

Name: High Capacity Model TQ-100 Stainless Steel Wire Mesh Belt Conveyor for Industrial Drying, Cooling and Material Handling Applications
Rating: 5.0 (50 reviews)

Don't miss out on this high - performance Wire Mesh Belt Conveyor! Contact us now to submit your inquiry and get a customized solution for your industrial needs.

 

Product Parameters

General Specifications

Product Name:	Wire Mesh Belt Conveyor
Material:	Carbon Steel, 201 Stainless Steel, 304 Stainless Steel
Application Industries:	Cement, Paper, Sugar, Chemical
Conveying Type:	Horizontal, Inclined, Vertical, Complex Spatial Layouts
Max Working Temperature:	600 °C
Incline Angle:	Up to 60 degrees
Capacity:	Up to 526 m³/h

Mechanical Parameters

Belt Type:	Wire Mesh Belt
Belt Material:	Stainless Steel Wire Mesh
Chain Type:	Separated Traction and Carrying Chains
Roller Bearings:	Yes, Rolling Bearing Type
Friction Reduction:	55% - 65% reduction compared to traditional rollers
Wear Resistance Treatment:	Alloy Steel Components with Wear Resistance Processing
Belt Width:	Industry Standard Widths, Customizable
Belt Speed:	Industry Standard Speeds, Customizable

Performance Parameters

Max Conveying Capacity:	526 m³/h
Max Incline Angle:	60 degrees
Operational Temperature Range:	-20 °C to 600 °C
Power Consumption:	Significantly Reduced Due to Friction Minimization
Service Life:	Extended by Alloy Steel Wear-Resistant Components

Installation & Maintenance

Structure:	Simplified Due to Separate Traction and Carrying Chains
Maintenance:	Easy Maintenance with 2-Hour Response Guarantee
On-Time Delivery:	98%
System Integration:	Supports Customized and Non-Standard Designs

Compliance & Quality

Quality Assurance:	High Performance, Reliable, and Durable
Environmental:	Energy Efficient with Lower Power Consumption
Standards:	Conforms to Applicable Industry Standards for Industrial Conveyors

Product Details

Product Introduction

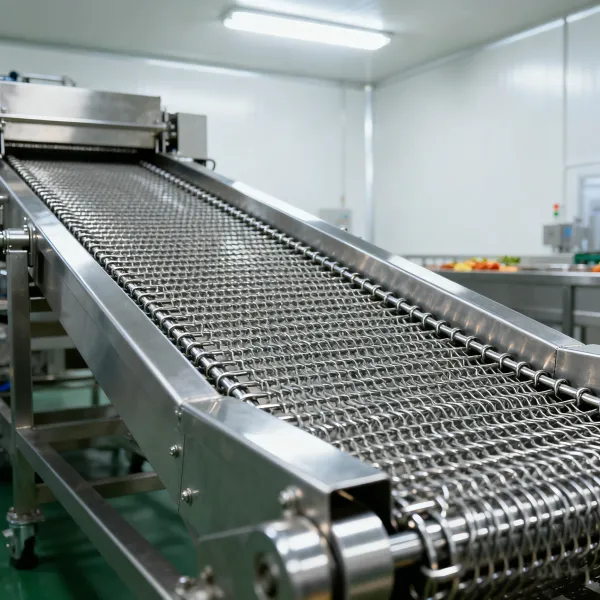

ZhengZhou TianQi Machinery Co., Ltd. presents the Wire Mesh Belt Conveyor, a top - notch material handling equipment. Crafted from carbon steel, 201 and 304 stainless steel, it can handle horizontal, inclined, and vertical conveying with complex spatial layouts. With a large capacity up to 526m3/h and an incline angle up to 60 degrees, it can transport materials up to 600°C. The separated traction and carrying chains simplify the structure, cut costs, and ease maintenance. Rolling bearings on rollers reduce friction by 55% - 65%, lowering power consumption. The wear - resistant alloy steel components ensure a long service life. TianQi Machinery offers a 98% on - time delivery rate and a 2 - hour response guarantee, providing customized solutions from non - standard designs to system integration.

Advantages and features

1. High capacity up to 526m3/h.
2. Can handle materials up to 600°C.
3. Separated traction and carrying chains for simplified structure and easy maintenance.
4. Rolling bearings on rollers reduce friction by 55% - 65%, saving energy.
5. Wear - resistant alloy steel components for long service life.
6. 98% on - time delivery rate and 2 - hour response guarantee.

Application Scenario

This conveyor is widely used in industries such as cement, paper, sugar, and chemicals. It supports high - temperature drying, cleaning, and freezing processing steps. Suitable for industrial customers around the world who need efficient material handling solutions.

Common problem

Q： How does your company guarantee the timely delivery of customer orders and the response of after-sales service?

A： We promise a 98% on-time delivery rate and provide rapid response service within 2 hours. We offer full support from non-standard design to system integration, reflecting Tianqi Machinery's efficient execution and customer-first service philosophy.

Q： Compared to traditional conveyors, what are the energy-saving advantages of this equipment?

A： The roller bearing design reduces friction by 55%-65%, significantly reducing energy consumption. At the same time, the simplified structure and convenient maintenance help customers achieve long-term energy saving and cost reduction, and improve overall operational efficiency.

Q： Can this wire mesh belt conveyor operate stably in high-temperature environments?

A： Yes. The equipment can operate at a maximum temperature of 600℃. It uses high-temperature resistant stainless steel and wear-resistant alloy steel components to ensure long-term stable operation in high-temperature conditions such as cement and chemical industries. Its performance is reliable and meets industrial standards.
