Name: Heavy-Duty Spiral Conveyor Model TQ-SC for Efficient Vertical and Horizontal Material Handling
Rating: 5.0 (50 reviews)

Product Parameters

General Specifications

Model:	Spiral Conveyor
Material Type:	Powder, Granular, Small Block Materials
Applicable Materials:	Coal, Cement, Stone, Sand, Clay, Ores
Conveyor Type:	Vertical Spiral Conveyor / Horizontal Screw Conveyor
Operation Mode:	Continuous
Usage Industry:	Mining, Chemical, Construction

Mechanical Parameters

Conveying Capacity:	Up to 150 m length for horizontal conveyor
Vertical Lifting Height:	Up to 20 meters
Spiral Rotor Speed:	High-speed, variable depending on application
Rotation Direction:	Clockwise or counterclockwise (customizable)
Feeding Method:	Multi-point feeding available for horizontal conveyor
Discharging Method:	Multi-point discharging for horizontal conveyor

Material & Construction

Main Body Material:	Wear-resistant Steel / Stainless Steel (depending on application)
Seal Type:	Fully sealed structure to prevent dust leakage and material spillage
Wear-Resistant Components:	Centrifugal friction elements with abrasion resistance
Surface Treatment:	Corrosion resistant coating or stainless steel finish
Maintenance:	Low maintenance design with easy access for cleaning and replacement

Performance Parameters

Conveying Efficiency:	High efficiency with precise material flow control
Operating Temperature Range:	-20°C to +60°C (standard)
Power Supply:	Three-phase AC power, voltage and frequency customizable
Noise Level:	<75 dB (depending on installation environment)
Operating Environment:	Suitable for dusty, corrosive and abrasive material handling environments

Installation & Operation

Installation Type:	Fixed installation with modular design for ease of assembly
Installation Angle:	Vertical for spiral conveyor; horizontal for screw conveyor
Control System:	Compatible with automated control systems and remote monitoring
Safety Features:	Overload protection, emergency stop, safety guards included

Quality & Compliance

Standards Compliance:	Conforms to international quality and safety standards
Delivery Time:	98% on-time delivery rate
Warranty:	Standard warranty period as per TianQi Machinery policy
After-Sales Service:	Comprehensive technical support and maintenance service

Close

Product Details

Product Introduction

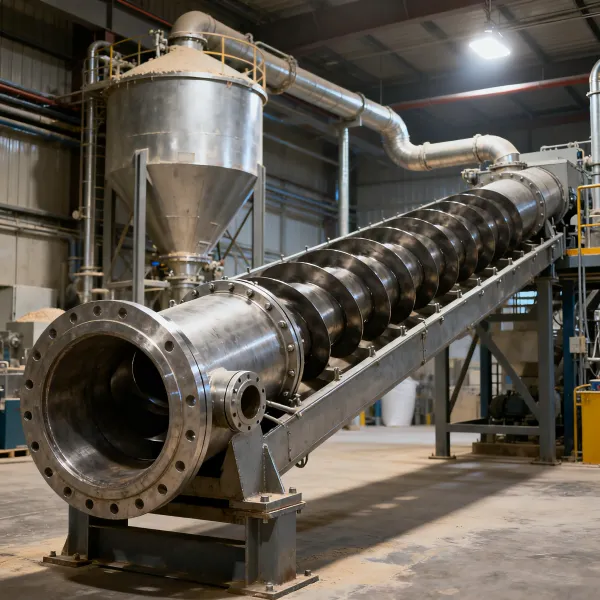

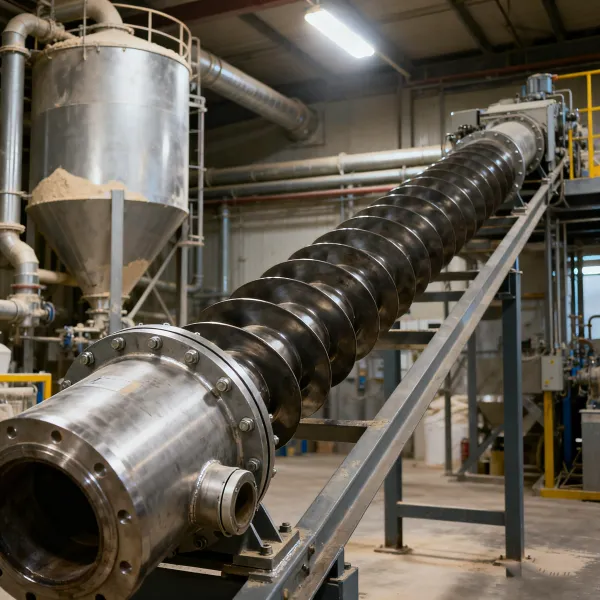

ZhengZhou TianQi Machinery Co., Ltd. proudly introduces the Heavy-Duty Spiral Conveyor Model TQ-SC, engineered for superior horizontal and vertical transport of powdery, granular, and small block materials including coal, cement, stone, sand, clay, and ores. Designed for mining, chemical, and construction industries, this conveyor offers robust performance with a high-speed spiral rotor enabling vertical lifting up to 20 meters and horizontal conveyor lengths up to 150 meters for multi-point feeding, discharging, mixing, and cooling. Built for durability and low maintenance, it ensures precise material flow with sealed operation to minimize wear and reduce material degradation. Backed by TianQi’s professional R&D and stringent international quality standards, the product guarantees 98% on-time delivery and comprehensive after-sales support. Its versatility and reliability make it ideal for global industrial applications requiring efficient and controlled material handling.

Advantages and features

1. High-speed spiral rotor with centrifugal friction enabling vertical lifts up to 20 meters.
2. Supports both vertical and horizontal configurations for versatile use.
3. Durable construction ensuring low maintenance and long service life.
4. Sealed operation reduces material wear and contamination.
5. Precise material flow control for efficient handling of powders and granular materials.
6. Capable of multi-point feeding, discharging, mixing, and cooling over 150 meters horizontal length.
7. Backed by professional R&D, stringent quality control, and excellent after-sales service.

Application Scenario

Ideal for industries such as mining, chemical processing, construction, cement manufacturing, coal handling, sand and stone transportation, and ore processing. Suitable for customers seeking reliable and efficient solutions for vertical lifting and horizontal conveying of powder, granular, and small block bulk materials worldwide.

Common problem

Q： What are the technological advantages of this heavy-duty screw conveyor that ensure reliable performance?

+

A： This conveyor features a high-speed spiral rotor and a robust, durable structural design, supporting vertical lifting up to 20 meters and horizontal conveying up to 150 meters. It allows for multi-point feeding and discharging. Sealed operation reduces wear and contamination, precisely controls material flow, minimizes maintenance costs, and meets ISO 9001 and CE certification standards, ensuring product stability and long-lasting performance.

Q： How to ensure the delivery and after-sales service of heavy-duty screw conveyors?

+

A： Zhengzhou Tianqi Machinery boasts a professional R&D team and rigorous quality control, guaranteeing a 98% on-time delivery rate for heavy-duty screw conveyors. The company provides comprehensive technical support, installation guidance, and spare parts supply to ensure smooth operation and maintenance of customer equipment, reflecting our strong commitment to customer satisfaction and long-term cooperation.

Q： Which industries are suitable for heavy-duty screw conveyors?

+

A： Zhengzhou Tianqi Machinery Co., Ltd.'s heavy-duty screw conveyors are widely used in industries such as mining, chemical, construction, cement manufacturing, coal processing, sand and gravel transportation, and ore processing. Their designs focus on the efficient vertical and horizontal handling of powdery, granular, and small lump materials, meeting the diverse industrial needs for efficient and durable conveying equipment.
